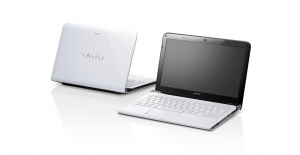

Sony VAIO Screen Replacement Guide

Published on: December 14th, 2016

Every now and then we want to do things on our own. If this is one of those occasions and you wish to replace the screen on your laptop by yourself, follow this step-by-step guide on Sony VAIO screen replacement. If your screen shattered as you accidentally dropped it or if you have a crack that has been bothering you, this DIY how-to goes through each step of the screen replacement process.

10 Steps to a Sony VAIO Screen Replacement

1. Before changing the LCD panel, disconnect the power from your laptop and remove the battery.
2. To begin, remove the four rubber screw covers from the bezel (protective screen) and the four bezel screws underneath the covers.
3. To separate the bezel, pull open the plastic on one side and move from the top to the opposite side.
4. Next, remove the two top screws and loosen the two bottom ones. Note: You don’t need to remove the bottom screws completely.
5. Remove the three sets of screws on each side of the LCD panel. Place the LCD screen on the keyboard and disconnect the inverter connector.
6. Lift the clear tape binding the video cable and disconnect by pulling on the tape. You can safely discard the old screen. To protect the screen from scratching, place a cloth or towel on the keyboard and set the new screen down.
7. Reconnect the inverter cable from the new screen as well as the video cable and secure the connector with the tape. Remember to be very careful while reconnecting the cables as they are very fragile. Make sure not to use too much force when doing this.
8. Lift the screen up, align it with the frame and remove the protective film. You can secure the LCD screen with three frame screws on each side. Replace the two frame screws on the top and tighten the two screws on the bottom.
9. Replace the bezel by aligning the bottom first and move up to the top. Next, reinstall the four bezel screws and screw covers.
10. Flip the laptop over and ensure the bottom is securely snapped in. Once done replace the battery and reconnect the power and turn on the laptop.

Although this guide is easy to follow, you may have had some trouble. No worries! Bring your Sony VAIO laptop to your local Computer Troubleshooters for your repair to be done by a tech specialist. Rest assured knowing we can fix your computer quickly and accurately. Find the local CT office nearest you!
